Draft order triggers, step by step

Draft orders are where B2B quotes, wholesale orders and phone orders live, and Shopify Flow has almost nothing for them. These ten triggers cover the life of a draft: edits, status, tags, notes and, opt-in, the contact data.

On this page: Draft Order Update, Draft Order Status Changed, Draft Order Line Items Changed, Draft Order Tags Added, Draft Order Tags Removed, Draft Order Note Changed, Draft Order Attributes Changed, Draft Order Email Changed, Draft Order Shipping Address Changed, Draft Order Billing Address Changed

Draft Order Update

Fires on every save of a draft order.

Fires from	Shopify webhook
Permission	Draft Order Data Access
Switched on	Turning on a Flow workflow that uses it switches it on. Its own switch is on the app's Triggers page

Use it for

• Mirror quotes into a CRM.
• A catch-all while you work out which narrower trigger fits.

What Draft Order Update sends to your workflow

Variable in Flow	Type	What it holds
draftOrder	Object	The draft order that was updated
draftOrder.id	ID
draftOrder.name	Text
draftOrder.status	Text
draftOrder.totalPrice	Text
draftOrder.currencyCode	Text
draftOrder.tags	Text
draftOrder.note	Text
draftOrder.invoiceUrl	Text
draftOrder.updatedAt	Text
payload	Text	JSON object containing the GID of the draft order that was updated (e.g. {"id":"gid://shopify/DraftOrder/123"})
eventId	Text	The id of this event. Search for it in the app's Event History to see exactly what was sent.

Example: Mirror every quote change into the CRM

1. Pick Draft Order Update as the trigger.
2. Add Send HTTP request with {{draftOrder.id}}, {{draftOrder.name}}, {{draftOrder.status}} and {{draftOrder.totalPrice}} {{draftOrder.currencyCode}}.
3. Turn the workflow on.

Draft Order Status Changed

Fires when a draft order moves between open, invoice_sent and completed.

Fires from	Shopify webhook plus change detection
Permission	Draft Order Data Access
Switched on	Turning on a Flow workflow that uses it switches it on. Its own switch is on the app's Triggers page

Use it for

• Start a reminder sequence when an invoice is sent.
• Tell the account manager when a quote turns into an order.

What Draft Order Status Changed sends to your workflow

Variable in Flow	Type	What it holds
draftOrder	Object	The draft order whose status changed
draftOrder.id	ID
draftOrder.name	Text
draftOrder.status	Text
oldStatus	Text	The previous status of the draft order (open / invoice_sent / completed)
newStatus	Text	The new status of the draft order (open / invoice_sent / completed)
eventId	Text	The id of this event. Search for it in the app's Event History to see exactly what was sent.

Example: Remind the customer three days after the invoice

1. Pick Draft Order Status Changed as the trigger.
2. Add a Condition: newStatus Equal to invoice_sent.
3. Add Wait for 3 days, then Send HTTP request to your email tool with {{draftOrder.name}}.
4. Turn the workflow on.

Draft Order Line Items Changed

Fires when the items of a draft order change: added, removed, quantity, price or variant. Same changes.items structure as the order trigger.

Fires from	Shopify webhook plus change detection
Permission	Draft Order Data Access
Switched on	Turning on a Flow workflow that uses it switches it on. Its own switch is on the app's Triggers page

Use it for

• Require approval when a sales rep lowers a price on a quote.
• Keep a reservation system in step with quotes.

What Draft Order Line Items Changed sends to your workflow

Variable in Flow	Type	What it holds
draftOrder	Object	The draft order whose line items changed
draftOrder.id	ID
draftOrder.name	Text
draftOrder.status	Text
changes	Object	The line item changes: added, removed, quantity, price and variant changes with their old and new values
changes.items	List of objects	List of detected changes
changes.items (each).changeType	Text	Type of change: added, removed, quantity_changed, price_changed, variant_changed
changes.items (each).lineItemId	ID	Line item ID (if available)
changes.items (each).productTitle	Text	Product title
changes.items (each).variantTitle	Text	Variant title
changes.items (each).oldVariantId	ID	Old variant GID (for removed or variant_changed)
changes.items (each).newVariantId	ID	New variant GID (for added or variant_changed)
changes.items (each).oldProductId	ID	Old product GID (for removed or variant_changed)
changes.items (each).newProductId	ID	New product GID (for added or variant_changed)
changes.items (each).oldQuantity	Number	Old quantity (for quantity_changed)
changes.items (each).newQuantity	Number	New quantity (for quantity_changed)
changes.items (each).oldPrice	Text	Old price (for price_changed)
changes.items (each).newPrice	Text	New price (for price_changed)
changes.items (each).lineItemData	Text	Full line item data as JSON
eventId	Text	The id of this event. Search for it in the app's Event History to see exactly what was sent.

Example: Ask for approval when a quote price is changed

1. Pick Draft Order Line Items Changed as the trigger.
2. Add a Condition: At least one of changes.items has changeType Equal to price_changed.
3. Add Add draft order tags needs-approval and Send internal email to the sales lead with the oldPrice and newPrice of the changed entries (a Liquid for loop over changes.items).
4. Turn the workflow on.

Draft Order Tags Added

Fires when at least one tag is added to a draft order.

Fires from	Shopify webhook plus change detection
Permission	Draft Order Data Access
Switched on	Turning on a Flow workflow that uses it switches it on. Its own switch is on the app's Triggers page

Use it for

• Let sales start a process by tagging a quote: approved, rush.

What Draft Order Tags Added sends to your workflow

Variable in Flow	Type	What it holds
draftOrder	Object	The draft order whose tags changed
draftOrder.id	ID
draftOrder.name	Text
draftOrder.status	Text
draftOrder.tags	Text
addedTags	Text	Comma-separated list of tags that were added to the draft order
removedTags	Text	Comma-separated list of tags that were removed from the draft order in the same update (may be empty)
currentTags	Text	Comma-separated list of all current tags on the draft order
previousTags	Text	Comma-separated list of all previous tags on the draft order before this update
eventId	Text	The id of this event. Search for it in the app's Event History to see exactly what was sent.

Example: Notify finance when a quote is approved

1. Pick Draft Order Tags Added as the trigger.
2. Add a Condition: addedTags Includes approved.
3. Add Send internal email to finance with {{draftOrder.name}}.
4. Turn the workflow on.

Draft Order Tags Removed

Fires when at least one tag is removed from a draft order.

Fires from	Shopify webhook plus change detection
Permission	Draft Order Data Access
Switched on	Turning on a Flow workflow that uses it switches it on. Its own switch is on the app's Triggers page

Use it for

• Undo what the matching tag-added workflow did.

What Draft Order Tags Removed sends to your workflow

Variable in Flow	Type	What it holds
draftOrder	Object	The draft order whose tags changed
draftOrder.id	ID
draftOrder.name	Text
draftOrder.status	Text
draftOrder.tags	Text
addedTags	Text	Comma-separated list of tags that were added to the draft order in the same update (may be empty)
removedTags	Text	Comma-separated list of tags that were removed from the draft order
currentTags	Text	Comma-separated list of all current tags on the draft order
previousTags	Text	Comma-separated list of all previous tags on the draft order before this update
eventId	Text	The id of this event. Search for it in the app's Event History to see exactly what was sent.

Example: Tell sales when approval is withdrawn

1. Pick Draft Order Tags Removed as the trigger.
2. Add a Condition: removedTags Includes approved.
3. Add Send internal email to the sales rep.
4. Turn the workflow on.

Draft Order Note Changed

Fires when the note of a draft order is added, changed or cleared.

Fires from	Shopify webhook plus change detection
Permission	Draft Order Data Access
Switched on	Turning on a Flow workflow that uses it switches it on. Its own switch is on the app's Triggers page

Use it for

• Pass internal remarks on a quote to the next team.

What Draft Order Note Changed sends to your workflow

Variable in Flow	Type	What it holds
draftOrder	Object	The draft order whose note changed
draftOrder.id	ID
draftOrder.name	Text
draftOrder.status	Text
draftOrder.note	Text
oldNote	Text	The previous note on the draft order (empty if the note was not set before)
newNote	Text	The new note on the draft order (empty if the note was cleared)
eventId	Text	The id of this event. Search for it in the app's Event History to see exactly what was sent.

Example: Forward quote notes to the account channel

1. Pick Draft Order Note Changed as the trigger.
2. Add Send HTTP request to Slack with {{draftOrder.name}}: {{newNote}}.
3. Turn the workflow on.

Draft Order Attributes Changed

Fires when custom attributes on a draft order are added, removed or changed.

Fires from	Shopify webhook plus change detection
Permission	Draft Order Data Access
Switched on	Turning on a Flow workflow that uses it switches it on. Its own switch is on the app's Triggers page

Use it for

• React to a PO number or a requested delivery week stored as an attribute.

What Draft Order Attributes Changed sends to your workflow

Variable in Flow	Type	What it holds
draftOrder	Object	The draft order whose custom attributes changed
draftOrder.id	ID
draftOrder.name	Text
draftOrder.status	Text
changes	Object	Detected attribute changes. Each item has a changeType (added, removed, or changed), the key, and the old and new values.
changes.items	List of objects	List of detected attribute changes
changes.items (each).changeType	Text	Type of change: added, removed, changed
changes.items (each).key	Text	The attribute key
changes.items (each).oldValue	Text	The previous value (empty string when changeType is 'added')
changes.items (each).newValue	Text	The new value (empty string when changeType is 'removed')
eventId	Text	The id of this event. Search for it in the app's Event History to see exactly what was sent.

Example: Catch a purchase order number

1. Pick Draft Order Attributes Changed as the trigger.
2. Add a Condition: At least one of changes.items has key Equal to po_number.
3. Add Send HTTP request to the ERP with the new value.
4. Turn the workflow on.

Draft Order Email Changed

Fires when the email address on a draft order changes. It carries the current address.

Fires from	Shopify webhook plus change detection
Permission	Draft Order Data Access
Switched on	Turning on a Flow workflow that uses it switches it on. Its own switch is on the app's Triggers page

Use it for

• Make sure invoices go to the corrected address.

What Draft Order Email Changed sends to your workflow

Variable in Flow	Type	What it holds
draftOrder	Object	The draft order whose email changed
draftOrder.id	ID
draftOrder.name	Text
draftOrder.status	Text
draftOrder.note	Text
email	Text	The draft order's current email address
eventId	Text	The id of this event. Search for it in the app's Event History to see exactly what was sent.

Example: Re-send the invoice after an email correction

1. Pick Draft Order Email Changed in Flow.
2. Add a Condition: draftOrder.status Equal to invoice_sent.
3. Add Send internal email asking the rep to re-send the invoice.
4. Turn the workflow on.

Draft Order Shipping Address Changed

Fires when the shipping address of a draft order changes.

Fires from	Shopify webhook plus change detection
Permission	Draft Order Data Access
Switched on	Turning on a Flow workflow that uses it switches it on. Its own switch is on the app's Triggers page

Use it for

• Recalculate shipping or taxes on a quote when the destination changes.

What Draft Order Shipping Address Changed sends to your workflow

Variable in Flow	Type	What it holds
draftOrder	Object	The draft order whose shipping address changed
draftOrder.id	ID
draftOrder.name	Text
draftOrder.status	Text
draftOrder.note	Text
shippingAddress	Text	The draft order's current shipping (delivery) address as a single formatted line (may be empty)
shippingAddressDetails	Object	The draft order's current shipping (delivery) address as structured fields (may be empty)
shippingAddressDetails.firstName	Text	First name on the address
shippingAddressDetails.lastName	Text	Last name on the address
shippingAddressDetails.name	Text	Full name, derived from firstName and lastName
shippingAddressDetails.company	Text	Company or organization name
shippingAddressDetails.address1	Text	First line - street address or PO box number
shippingAddressDetails.address2	Text	Second line - apartment, suite, or unit
shippingAddressDetails.city	Text	City, district, village, or town
shippingAddressDetails.province	Text	Region - province, state, or district
shippingAddressDetails.provinceCode	Text	Region code (for example ON)
shippingAddressDetails.zip	Text	ZIP or postal code
shippingAddressDetails.country	Text	Country name
shippingAddressDetails.countryCode	Text	Two-letter country code (for example US)
shippingAddressDetails.phone	Text	Phone number on the address
eventId	Text	The id of this event. Search for it in the app's Event History to see exactly what was sent.

Example: Flag quotes whose destination country changed

1. Pick Draft Order Shipping Address Changed in Flow.
2. Add Add draft order tags recheck-shipping and mention {{shippingAddressDetails.countryCode}} in an internal email.
3. Turn the workflow on.

Draft Order Billing Address Changed

Fires when the billing address of a draft order changes.

Fires from	Shopify webhook plus change detection
Permission	Draft Order Data Access
Switched on	Turning on a Flow workflow that uses it switches it on. Its own switch is on the app's Triggers page

Use it for

• Keep the debtor record of an ERP current before the invoice is issued.

What Draft Order Billing Address Changed sends to your workflow

Variable in Flow	Type	What it holds
draftOrder	Object	The draft order whose billing address changed
draftOrder.id	ID
draftOrder.name	Text
draftOrder.status	Text
draftOrder.note	Text
billingAddress	Text	The draft order's current billing address as a single formatted line (may be empty)
billingAddressDetails	Object	The draft order's current billing address as structured fields (may be empty)
billingAddressDetails.firstName	Text	First name on the address
billingAddressDetails.lastName	Text	Last name on the address
billingAddressDetails.name	Text	Full name, derived from firstName and lastName
billingAddressDetails.company	Text	Company or organization name
billingAddressDetails.address1	Text	First line - street address or PO box number
billingAddressDetails.address2	Text	Second line - apartment, suite, or unit
billingAddressDetails.city	Text	City, district, village, or town
billingAddressDetails.province	Text	Region - province, state, or district
billingAddressDetails.provinceCode	Text	Region code (for example ON)
billingAddressDetails.zip	Text	ZIP or postal code
billingAddressDetails.country	Text	Country name
billingAddressDetails.countryCode	Text	Two-letter country code (for example US)
billingAddressDetails.phone	Text	Phone number on the address
eventId	Text	The id of this event. Search for it in the app's Event History to see exactly what was sent.

Example: Update the ERP before invoicing

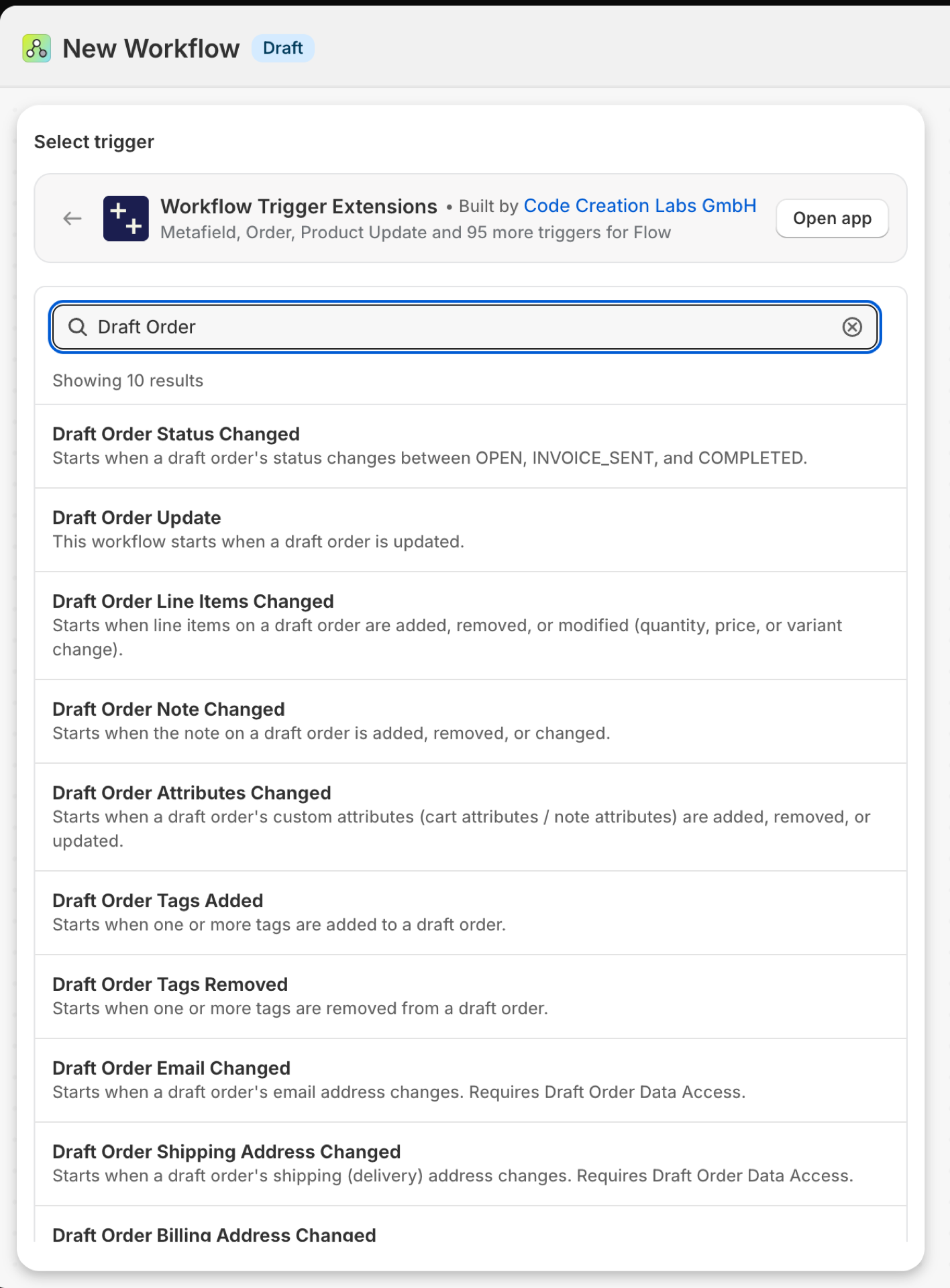

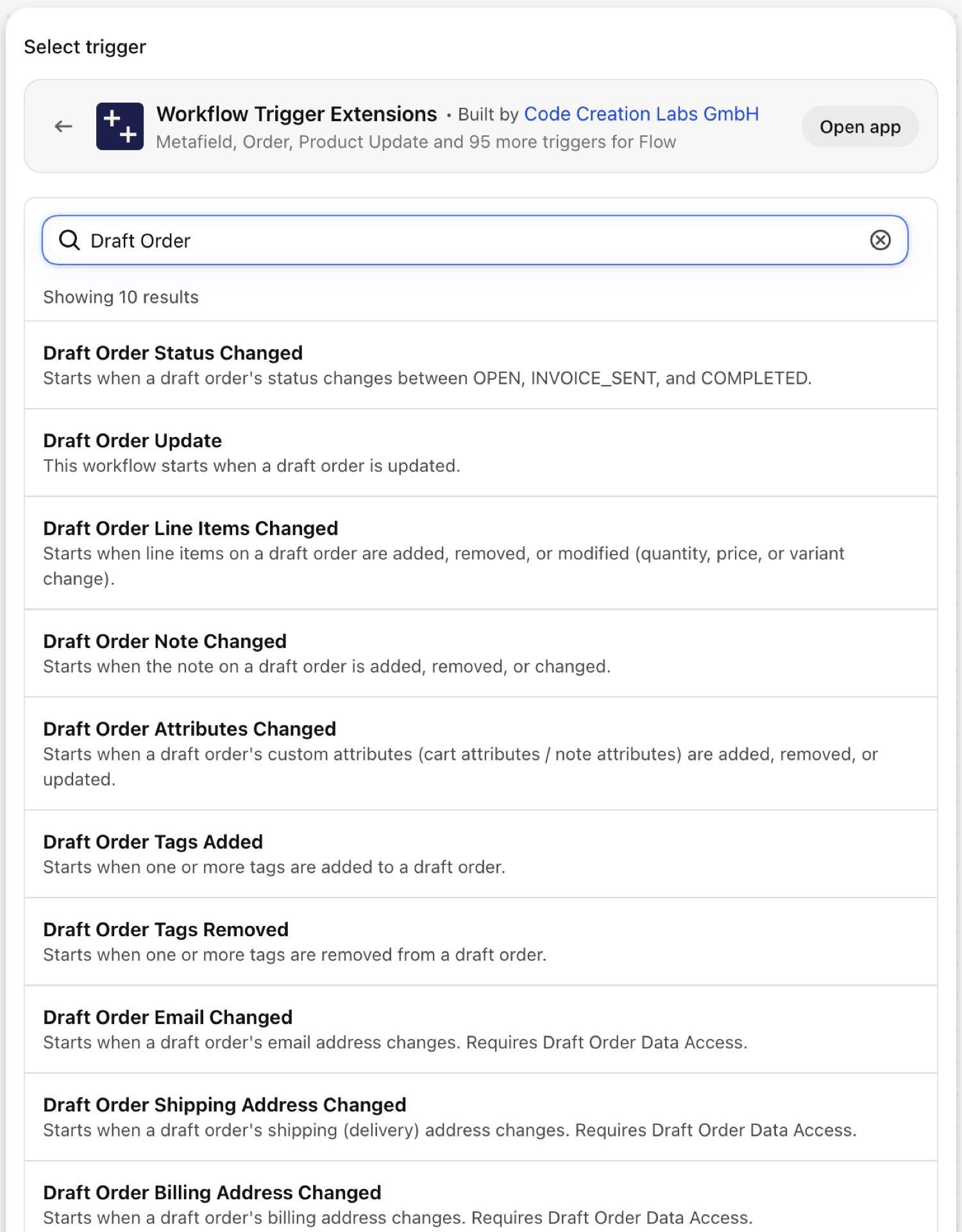

1. Pick Draft Order Billing Address Changed in Flow.
2. Add Send HTTP request with {{draftOrder.id}} and the fields of billingAddressDetails.
3. Turn the workflow on.

Next steps

A draft order is not a Flow reference type, so these triggers deliver a draftOrder object with the id, name and status. For anything else add a Send Admin API request or Run code step with draftOrder.id.

• Complete trigger reference - every trigger on one page.
• Choosing the right trigger - which one fits your case.
• Custom triggers - when no built-in trigger fits, write your own.
• Event history and troubleshooting - see what fired and what it carried.
• Trigger events on a record's admin page - the latest events of one record, on its own page in the Shopify admin.
